The Ultimate Guide to the Skid Steer Mounting Plate: Making Your Machine More Useful
The skid steer mounting plate is the backbone of modern heavy machinery versatility. If you want to get the most out of your work, you need to know how a high-quality skid steer mounting plate works and what its benefits are, whether you are a professional contractor, a farmer, or a DIY enthusiast with a compact loader.
At Skid Steer Loader, we know that the right connection between your machine and your attachments can mean the difference between a productive day and a frustrating equipment failure.
This detailed guide will cover everything you need to know about the skid steer mounting plate, including its technical specifications, material grades, and the many uses that make it a “must-have” for any loader owner.
What is a plate for mounting a skid steer?
A skid steer mounting plate, also called a quick-attach plate or “quick tach” mount, is a standard steel interface that lets a skid steer loader quickly connect to different attachments. The Universal Quick Attach (SSQA) standard is a universal system that makes sure that a loader from one brand can use a bucket, pallet fork, or grapple from another brand.
- Heavy-Duty Construction: Usually made from Grade 50 structural steel, which can handle thousands of pounds of pressure.
- Easy to use: The locking pin mechanism is simple and lets operators change tools in less than a minute without having to remove the pins by hand.
Dimensions and technical specifications
When you shop for a skid steer mounting plate, you need to be very careful. If a plate doesn’t meet the SSQA standard, it will cause alignment problems that will wear out your machine’s locking pins too soon. Most standard plates have a certain set of dimensions so that they can be plugged in and used right away.

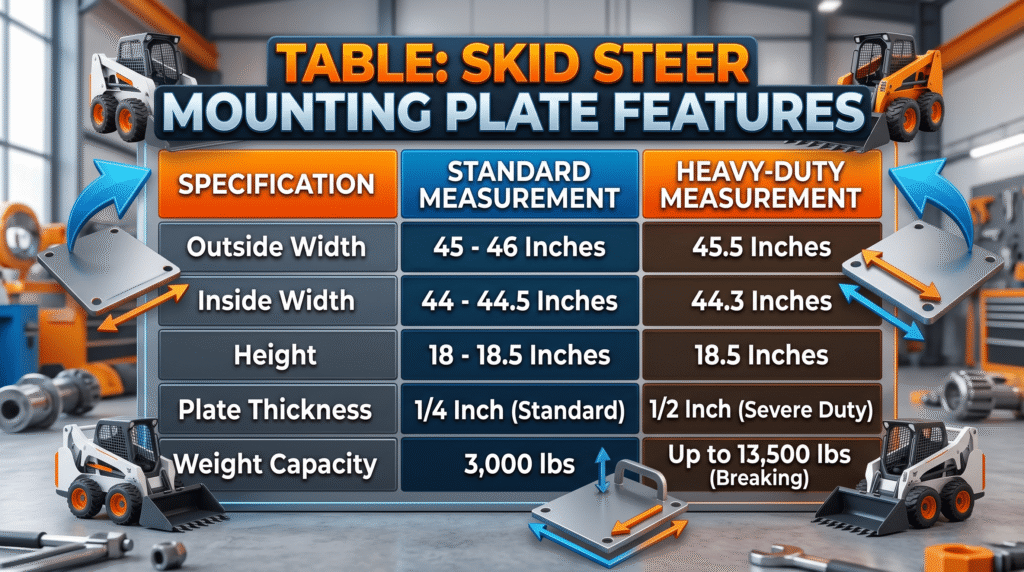

Table: Skid Steer Mounting Plate Features
| Specification | Standard Measurement | Heavy-Duty Measurement |
| Outside Width | 45 – 46 Inches | 45.5 Inches |
| Inside Width | 44 – 44.5 Inches | 44.3 Inches |
| Height | 18 – 18.5 Inches | 18.5 Inches |
| Plate Thickness | 1/4 Inch (Standard) | 1/2 Inch (Severe Duty) |
| Weight Capacity | 3,000 lbs | Up to 13,500 lbs (Breaking) |
- Top Bar Precision: The top lip of the skid steer mounting plate is usually 1/2″ or 1/4″ thick. This is where the loader arms connect to the plate.
- Precision Latch Pockets: These pockets are at the bottom and must be laser-cut to the exact size so that the machine’s pins can slide in and lock securely.
- Surface Finish: High-quality plates are either powder-coated or sprayed with high-temperature paint to keep them from rusting and corroding while they are stored outside.
Different kinds of mounting plates for different purposes
Not all skid steer mounting plates are made the same way. You might need a special version of the plate depending on the type of machinery you have and how hard you work.
1. Quick Attach Plates with Weld-On
These are blank plates for people who want to make their own attachments or change old “pin-on” buckets.
- Custom Fabrication: Great for welding onto snow plows or farm equipment that you made yourself.
- Different types of material: It comes in thicknesses from 5/16″ to 1/2″, depending on how much weight it needs to hold.
- Cost-Effective: Usually the cheapest way to bring a fleet of old attachments up to date.
2. Plates for Converting Adapters
Adapter plates fill in the gaps between different mounting systems. For example, they can change a tractor’s front-end loader to work with the skid steer quick-attach standard.
- Versatility of Tractors: Lets tractors use a huge range of skid steer attachments, such as grapples and augers.
- Mini to Full-Size: Some adapters allow mini-skid steer attachments to be used on full-sized loaders, though weight limits must be strictly followed.
- Three-Point Hitch Adapters: These let you connect Category 1 or 2 three-point tools to the front of a skid steer.
3. Heavy-Duty 1/2″ Plates
A standard plate might bend when used for demolition, heavy rock work, or high-horsepower machines. The 1/2″ skid steer mounting plate is the best option for the toughest jobs.
- Boxed Rails: These often have reinforced boxed upper rails to keep them from twisting when pressure is applied from the sides.
- Gusseted Corners: Extra steel plates at the stress points make sure the plate won’t break when you pry it open.
- Maximum Capacity: These machines can lift more than 4,000 pounds.
The Best Things About Using a Universal Skid Steer Mounting Plate
A high-quality skid steer mounting plate not only makes your equipment easier to use, but it also makes it better. It changes the return on investment (ROI) of your machines in a big way.
- More work done: It only takes a few seconds to switch from a bucket to move dirt to pallet forks to move supplies, which keeps your crew moving.
- Asset Standardization: If you have more than one machine, you only need one set of attachments that can be used on all of them.
- Resale Value: It’s much easier to sell attachments with a universal skid steer mounting plate on the secondary market than those that are brand-specific or pin-on.
Advice on how to install and care for Skid Steer Mounting Plate
Follow these best practices for installing and maintaining your skid steer mounting plate to make sure it lasts as long as your machine.
- Best Practices for Welding: When welding a plate to an attachment, use a multi-pass weld and let the metal cool between passes to keep the plate’s flat surface from warping.
- Latching Holes Check: Check the latching holes every day for dirt or stones that could keep the locking pins from fully engaging.
- Grease: Make sure the quick-attach levers on your loader are always greased so they can easily lock into the skid steer mounting plate.
FAQs: Skid Steer Mounting Plate Attachments
Is it possible to weld a skid steer mounting plate to a tractor bucket?
Yes! A lot of people who own tractors buy a weld-on skid steer mounting plate to turn their permanent pin-on buckets into quick-attach ones. This lets the tractor use any standard skid steer attachment.
How thick is a 1/4″ plate compared to a 1/2″ plate?
A 1/4″ plate is usually used for light work, like moving light things or clearing snow (it can hold 3,000 pounds). A “Severe Duty” plate is a 1/2″ plate that is needed for heavy demolition, prying, and high-flow attachments.
What is the maximum weight that a universal mounting plate can hold?
Most standard plates can hold between 3,000 and 4,500 pounds of weight. But high-quality steel plates usually have a “breaking capacity” of more than 13,000 pounds to keep people safe in case of a sudden impact.
Do I need an adapter for a mini skid steer?
Yes, mini skid steers use a smaller “Mini-Universal” or “CII” (Common Industry Interface) plate. You will need a special adapter plate if you want to use full-sized attachments on a mini loader.
What makes Grade 50 steel so important for these plates?
Compared to standard A36 mild steel, grade 50 steel has a higher yield strength. This means that the skid steer mounting plate can bend more without breaking, which is important when moving heavy, uneven loads.
Final Thoughts on Updating Skid Steer Mounting Plate Equipment
The fastest way to make a machine that can only do one thing into a powerful machine that can do many things is to buy a strong skid steer mounting plate. You can do a lot more with your attachments if they meet the universal standard. For example, you can use them for farming, landscaping, building, and site prep.
Visit Skid Steer Loader to see all of our loaders and technical guides. Picking the right skid steer mounting plate will make sure your machine is always ready for the next job, whether you need a standard weld-on plate or a heavy-duty conversion kit.
