How You Can Turn Your Skid Steer into a High-Productivity Trenching Machine – skid steer loader trencher attachment
Today’s construction and farming machines must not only perform various tasks but also be able to quickly change locations. Purchasing a variety of single-purpose machines is not the only way to increase your productivity. One way to increase your productivity is to utilize your existing fleet in the best possible way with skid steer loader trencher attachment.
The most cost effective way to upgrade a compact loader into a fast and accurate excavation machine is to equip it with a heavy-duty skid steer loader trencher attachment. Even if you are working with big machines able to move in all terrains or compact ones such as TYPHON STOMP mini skid steer, it is the right choice of attachments that will allow you to perform almost any earthmoving task, with hardly any extra costs.
Although you could hire a dedicated trenching machine or use a traditional excavator, there are many reasons why trenching with a skid steer loader is still considered to be the best option. When it comes to maneuverability, hydraulic capability and speed of movement, skid steer loaders not only have the edge over walk-behind trenchers but they also take up less space on the turf.
The change of a regular skid steer loader to a high-performance trencher requires the use of factors like the chain configuration that suits your model’s auxiliary hydraulic flow requirement, and also learning operating techniques. If you properly configure your machine and maintain the chain cutting assembly, you can even increase your speeds significantly and produce the greatest finish and clean trenching results each time.
Selection of Heavy-Duty Skid Steer Loader Trencher Attachment
You need to choose a heavy-duty skid steer loader trencher attachment that will fit your skid steer loader structurally and hydraulically if you want to transform your machine. As each trenching frame is a different construction, if you choose one that will strain or not utilize your skid steer, you will undoubtedly get poor performance and be forced to change the hydraulics prematurely.
The best ones are usually made with heavy-duty planetary gearbox drive design instead of standard direct drives that provide torque multiplication essential for cutting through very hard clay, thick roots and frozen soil.
Also you should compare the actual weight and dimensions of the trenching frame with what your machine is capable of. Smaller areas, gardens, parks or orchards are right for the use of lightweight and very agile platforms like the TYPHON STOMP mini skid steer which can be attached with specialized products that do not damage deeply finished turf.
On the other hand, for industrial sized operations, full loaders with their capacity to provide high flows for hydraulics can meet the requirements of extra-deep boom configurations going through abrasive conditions.
- The host unit’s auxiliary hydraulic flow rates (expressed in Gallons Per Minute or GPM) are required to be exactly compatible with the planetary motor’s demand.
- Try to get a trenching tool with a quick-attach mounting plate that is standard to allow seamless changes between buckets, grapples, and trenchers.
- Check out trench widths available and select the size you will require for your particular pipe, or utility conduit, etc.
Paired Soil Conditions to the Best Digging Chain Configuration
The total productivity of your trenching tasks is highly dependent on selecting a suitable cutting teeth configuration that fits perfectly the geological profile of your work area. Pushing a standard dirt chain to the break ins of bones abruptly dulls the cutting edges and eventually causes very high hydraulic drag and catastrophic tooth failure.
On the other hand, if you decide to use an expensive, very aggressive rock chain in light, sandy loam, you will experience increased vibration at the operator’s cabin, which is highly inefficient.
Today, the trencher market offers an extensive choice of chain replacements that are quality tested and can be changed seasonally and geographically according to needs. For instance, when dealing with soft soils or sticky clays a double-standard cup tooth is the best solution because it offers a maximum scooping action to efficiently remove material from the trench.
When the trenches are being dug in mixed rocky soil or frozen soil conditions, the use of carbide teeth will cause the hard stones to separate and break up the heavy ice covering this way.

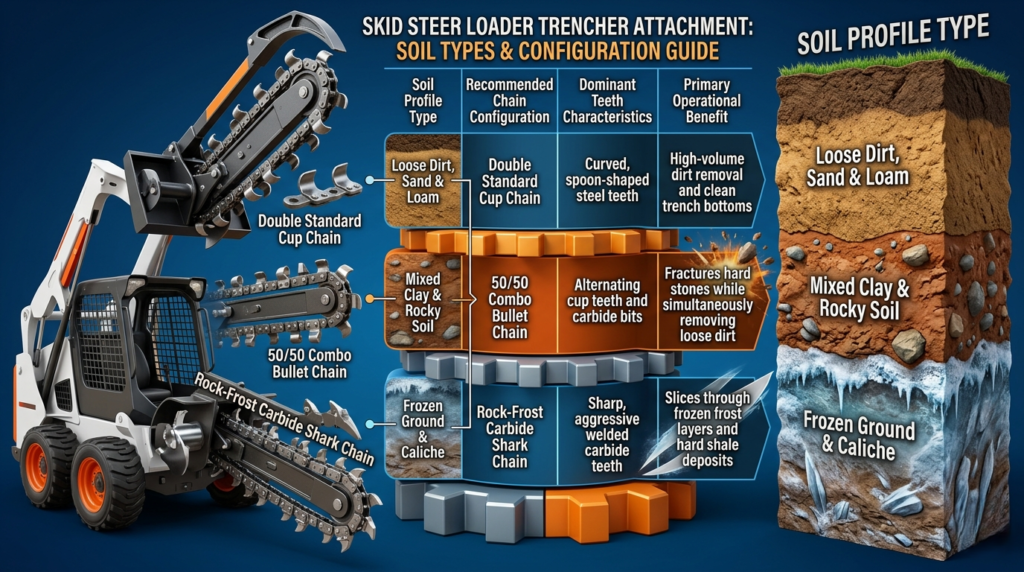

Table: skid steer loader trencher attachment Soil Types
| Soil Profile Type | Recommended Chain Configuration | Dominant Teeth Characteristics | Primary Operational Benefit |
| Loose Dirt, Sand & Loam | Double Standard Cup Chain | Curved, spoon-shaped steel teeth | High-volume dirt removal and clean trench bottoms |
| Mixed Clay & Rocky Soil | 50/50 Combo Bullet Chain | Alternating cup teeth and carbide bits | Fractures hard stones while simultaneously removing loose dirt |
| Frozen Ground & Caliche | Rock-Frost Carbide Shark Chain | Sharp, aggressive welded carbide teeth | Slices through frozen frost layers and hard shale deposits |
- For agriculture where loose dirt is excavated and mounded clear of the trench, standard cup teeth are the right choice.
- Cobalt shark teeth or scorpion teeth combos will handle the digging in compacted gravel roads or rocky sites.
- Continuously monitor the teeth wear pattern to prevent uneven wear that could cause twisting loads on the boom.
Hydraulic Optimization and Chain Tension
The high-efficiency trencher is mostly dependent on a continuously rebalanced hydraulic pressure and physical chain tension. A digging chain that is set too tight is akin to involving a lot of friction at the nose roller of the boom and the drive sprocket, this way your skid steer loader HP is just getting lost as well as overheating the hydraulic oil tank.
Conversely, a digging chain adjusted too loosely would run very badly or even come off the sprockets, or would at some point get wrapped around the frame, and possibly would result in damage to the operator.
To fix the tension of the chain in a correct way, there shouldn’t be much slack, and also there should be a small visible sag on the underside of the boom while the attachment is lifted up in the air.
This setting protects the chain’s natural flex when it comes into contact with underground obstructions. Besides that, an operator should always stay on top of hydraulic flow maintenance by operating the engine at high RPM, but at the same time, keeping ground speeds very low. This way the auxiliary system is assured of maximum delivery of torque to the trench chain without getting starved of the loader’s drive motors.
- Modify tension in the boom spring to the point the chain shows a gentle and controlled sag, ensuring no risk of sprocket derailment.
- Always apply top-quality gear oil for all-sizes planetary drive housing to keep the critical bearings well protected for hours of excavation.
- Operate the auxiliary hydraulic with soft hand to avoid sudden torque explosions that could shear chain pins or break hydraulic seals.
Learning Proper Trenching and Mechanical Depth Control
Your skid steer loader will be converted into a high-efficiency trencher only if you move away from traditional excavation methods. A bucket or grapple attachment is what usually comes to mind for excavation, but in reality, a trencher can’t be run forward at all. You have to understand that the instantaneous binding of the cutter mechanism upon the insertion of the boom into the soil will also be the first step in bending the structural components of the attachment frame.
Begin the trenching process by standing at the cutting point and launching the chain rotation with the help of the auxiliary hydraulic system first, then lower the nose of the boom slowly at a small angle into the soil. After the chain first opens up the surface and the pocket is created, then the operator should gradually descend the attachment and the integrated skid shoe of the main frame should touch the ground flat. Keeping a standard cutting angle of 45° to 60° is the best way to maintain a balance between structural weight and efficient earth removal.
- Always move the skid steer loader backwards very slowly so that the machine’s motion matches the chain’s cutting speed.
- Use the built-in mechanical depth gauge and side shift to trace lines alongside foundations or walls.
- Do not use hydraulic “float” mode on the skid steer, manual control ensures the right down force through the loader arms.
Crumber Bar and Spoil Auger Usage for Perfect Cleanup
Your job does not end with the production of a trench; the real separation occurs between those who can operate the equipment without leaving loose crumbs or collapsed sidewalls and those who cannot.
Efficiency trenching machines normally use two major components that clean up: The adjustable crumber bar (often called the trench cleaner) and the heavy-duty side spoil auger. You can be sure that you will be forced to shovel out loose debris if you do not use these two properly adjusted parts.
The crumber bar lying just behind the main chain does a very good job of not only scraping the floor of the cut but also it gathers loose dirt that is pulled back and then chains are again doing the lifting out of the trench.
At the same time, the spoil auger a large diameter stationed at the surface catches the incoming dirt and pushes it outward so this creates a nice and neat mound along the right side of the trench. This way the very edge of the trench area is kept clear and clean and loose rocks or soil are not pulled back in by gravity.
- Set the trailing crumber shoe distance to match your target trench depth, keeping it pinned firmly down once the initial cut is established.
- Maintain the spoil auger between 3 to 6 inches off the ground to significantly reduce hydraulic drag while ensuring clean dirt displacement.
- Pair your trenching operations with a dedicated skid-steer trench filler attachment or a compact utility bucket for efficient, rapid backfilling.
Top Safety Precautions and Site Preparation Before Digging
The use of a very powerful, high speed rotary cutting tool necessitates the strict following of safety rules of commercial nature. Before the heavy-duty skid steer loader trencher attachment ever lays a hand on the soil of the jobsite, you must undertake a comprehensive assessment of underground utilities.
Even if the detection equipment gives the all-clear, a visual and cross-sectional excavation to confirm line locate is the final stage before going underground. Striking buried electrical lines, high-pressure gas mains, or fiber-optic communication cables is incredibly hazardous and carries severe financial liabilities.
Always contact local utility protection services (such as 811) to mark buried conduits before digging. Also, the operator must check that there $is a clear path completely$ free of large surface boulders, thick steel debris, and hidden concrete footings.
Since a skid steer loader trencher is a very powerful hydraulic equipment, the occurrence of an unexpected strike of an immovable underground object may result in a dangerous pitching or shifting of the machine that can lead to fatigue and even injuries.
- You should never try to get rid of rocks or roots tangled in the chain with the skid steer loader still running.
- All bystanders and the ground crew should be kept not less than 30 feet away from the moving spoil auger and the cutting boom.
- Dropping the attachment flat to the ground, setting mechanical parking brake, and switching off the ignition are the steps before you leave the operator’s seat.
FAQs – Heavy-duty skid steer loader trencher attachment
I am planning to buy a trencher attachment but what skid steer size do I need for it?
It is required that the skid steer you use for the trencher attachment enable the necessary auxiliary hydraulic flow (usually 13 – 30 GPM) to match the hydraulic motor of the attachment. While large-frame loaders are best for 48-inch industrial boom, small, specialized compact models such as TYPHON STOMP mini skid steer can still run a compact trenching attachment that is designed for use of standard-flow hydraulics, so it is perfect for residential utility lines, landscaping layouts, and small farm projects.
Is it possible to use a skid steer trencher in very rocky soil or frozen ground?
Indeed, using a skid steer trencher on soil very harsh inrocks or frozen ground is possible if only you use the correct cutting chain configuration. In terms of tools, the standard cup teeth are just not effective in such conditions, so the 50/50 combo bullet chain or the super tough rock-frost carbide shark chain will be your options. These carbide-tipped teeth are like the newest generation of miniature jackhammers, fracturing rock and ice without exceeding the hydraulic system capacity of your loader.
What kind of depth and width capabilities are there in a skid steer loader trencher attachment?
Typically, usable boom lengths for standard skid steer loader trencher attachments are 36 inches (3 feet) or 48 inches (4 feet), which are depths commonly needed for utility installations. Cutting width depends on the chain selected and generally ranges from 4 inches to 12 inches wide. Narrower widths can reduce power requirements and allow operation of contact flow skid steers under extreme conditions.
Why do I experience stalling in the dirt with my skid steer trencher attachment?
The first and foremost cause of this is likely to be excessive ground speed or too much down pressure exerted on the loader arms. Since like a chain, a trencher digs by cutting the earth incrementally, your speed and chain cutting capacity must match, so backing up too quickly forcing the teeth to the uncut earth may even stop the motor. Stalling may also be induced particularly if the digging chain is very tight, or if, instead of full throttle, the host engine is at low RPM.
Use Mini Excavator or Skid Steer with Trencher Attachment
Trencher attachment-equipped skid steer loaders can work very efficiently and quite rapidly for long stretches of straight utility lines, irrigation networks, or perimeter fencing as it makes a very uniform cut and can keep moving in reverse. However, if you need to dig around some obstructing features, cross-banks, or deep foundations with wide opening, then considering a mini excavator or a specialized grapple bucket combo might give you more flexibility in terms of functioning.
What are the proper maintenance steps for heavy-duty skid steer loader trencher attachment?
At a minimum, you should check your digging chain tension after the first 150 ft. of operation, and every 1,500 ft. after that. You must continually grease the nose roller bearings, closely examine teeth for dullness and signs of cracking, and keep the planetary drive gearbox oiled with the proper gear oil. Additionally, after every workday, clean out the crumber shoe to stop rust and binding from occurring.
Can skid steer loader trencher attachment be operated moving forward?
No, this machine is mechanically designed to be used only while the operator is traveling in reverse. Moving backwards allows the digging chain to pull up dirt toward the spoil auger and also pulling the boom down into the cut. Forcing the skid steer loader forward while the boom is lowered is going to drastically damage mechanically the quick-attach frame, bend your boom arm and most probably destroy your cutting chain alignment.
